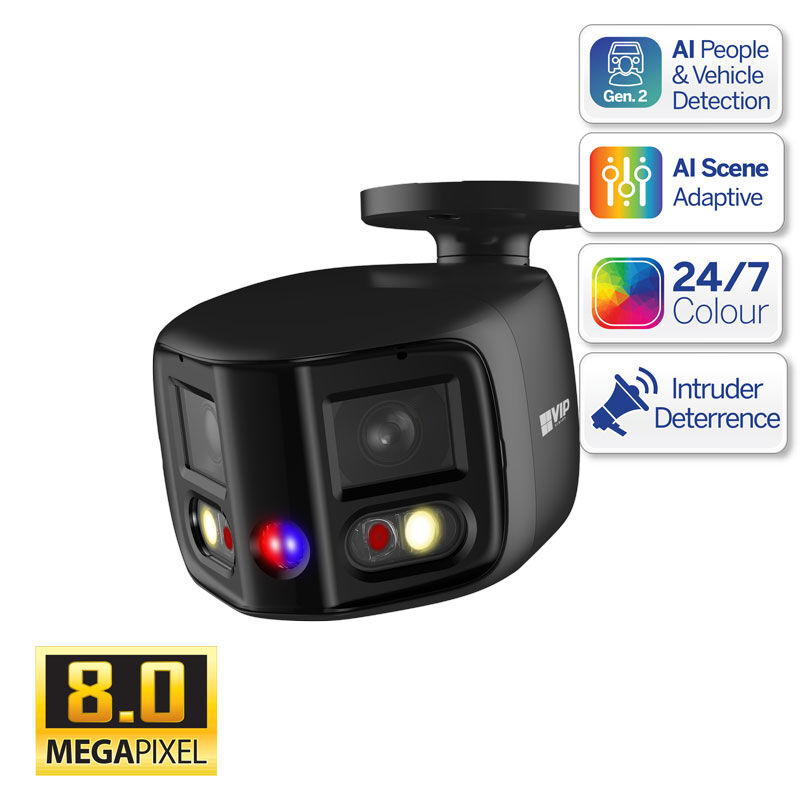

Professional AI Series 8.0MP 180° Active Deterrence Bullet (Black)

The VIP Vision VSIPP-8BD-ID3-B in the Pro AI Series delivers 180° site-wide coverage and a suite of AI detection and active deterrence features to secure homes and business. Perform the job of multiple cameras in a single camera with panoramic field of view from twin 4.0 megapixel 2.8mm lenses and unique electronic PTZ mobility functions via your NVR.

This active deterrence model incorporates AI detection and a variety of in-camera features to deter intruders. Upon a human or vehicle detection event, these cameras can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone to deter intruders. They are ideal for active security across a variety of residential and commercial applications.

Camera Features:

Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
24/7 Colour low light performance at with colour 0.005lx minimum illumination
25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
Adjustable lighting modes with backlight/highlight compensation & true WDR (120dB)
3D digital noise reduction & auto white balance
H.265 encoding for efficient storage & streaming
Built-in microphone and loudspeaker for 2-way talking
1 Audio In/Output (RCA)
MicroSD slot for recording at the edge up to 256GB
IP67 weather rated housing for outdoor use

Specifications

Camera

Image Sensor : Dual 1/2.7” 4.0MP Progressive Scan CMOS
Max. Resolution : 8.0 Megapixel
Effective Pixels : 4096 (H) x 1860 (V)
RAM / ROM : 1GB / 128MB
Min Illumination : 0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
S/N Ratio : > 56dB
Infrared System : 2 x Infrared LED, 25m range, Auto/manual on/off control
White Light LED : 2 x Warm White LED, 20m range, Auto/manual on/off control
Active Deterrence : 1 x Red & Blue Strobe, 1 x Siren Loudspeaker

Lens

Lens Type : Fixed
Lens / Iris : 2.8mm F1.4 Fixed Focal Lens with Fixed Iris
Field of View : Horizontal: 180°, Vertical: 86°
Focus : Auto Focus / 0.8m Min. Focus Distance

DORI

Detect (25px/m) : 51m
Observe (63px/m) : 20m
Recognise (125px/m) : 10m
Identify (250px/m) : 5m

Video

Resolution : 8.0MP (4096 x 1860) to 960 x 432
Frame Rate (Main) : 8.0MP (1 ~ 20fps)
Frame Rate (Sub) : 1200 x 530 (1 ~ 20fps)
Frame Rate (Third) : 1920 x 860 (1 ~ 20fps)
Video Compression : H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
Bit Rate : H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) : Yes
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto
Noise Reduction : 3D DNR
Picture Control : N/A

IVS

Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog
Perimeter Protection : Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
Face Detection : N/A
Face Attributes : N/A
People Counting : N/A
Heat Map : N/A
Event Trigger : Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search : Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method : Multicast
Max. User Access : 20 Users (Total bandwidth: 64MB) : Interface
Video Interface : N/A
Audio Interface : Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface : 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
RS485 : N/A
Edge Storage : MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability : ONVIF (Profile S, Profile G, Profile T) / CGI
