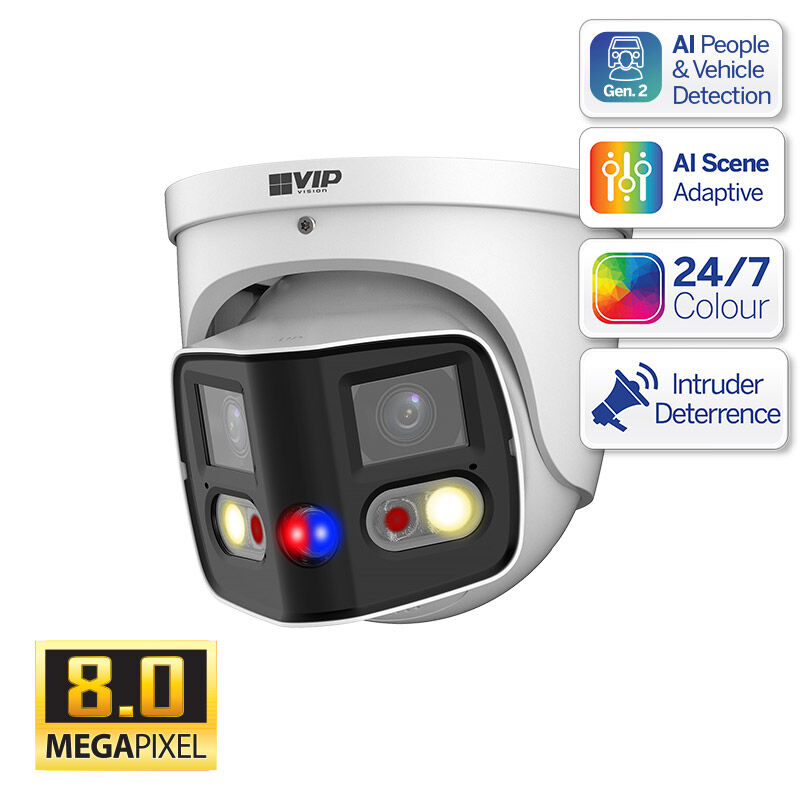

The VIP Vision VSIPP-8DD-ID3 in the Pro AI Series delivers 180° site-wide coverage and a suite of AI detection and active deterrence features to secure homes and business. Perform the job of multiple cameras in a single camera with panoramic field of view from twin 4.0 megapixel 2.8mm lenses and unique electronic PTZ mobility functions via your NVR.

This active deterrence model incorporates AI detection and a variety of in-camera features to deter intruders. Upon a human or vehicle detection event, these cameras can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe and a loud siren with programmable message/tone to deter intruders. They are ideal for active security across a variety of residential and commercial applications.

Camera Features:

• Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
• Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
• 24/7 Colour low light performance at with colour 0.005lx minimum illumination
• 25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
• Adjustable lighting modes with backlight/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• Built-in microphone and loudspeaker for 2-way talking
• 1 Audio In/Output (RCA)
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use

Specifications

Camera

• Image Sensor : Dual 1/2.7” 4.0MP Progressive Scan CMOS
• Max. Resolution : 8.0 Megapixel
• Effective Pixels : 4096 (H) x 1860 (V)
• RAM / ROM : 1GB / 128MB
• Min Illumination : 0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
• S/N Ratio : > 56dB
• Infrared System : 2 x Infrared LED, 25m range, Auto/manual on/off control
• White Light LED : 2 x Warm White LED, 20m range, Auto/manual on/off control
• Active Deterrence : 1 x Red & Blue Strobe, 1 x Siren Loudspeaker

Lens

• Lens Type : Fixed
• Lens / Iris : 2.8mm F1.4 Fixed Focal Lens with Fixed Iris
• Field of View : Horizontal: 180°, Vertical: 86°
• Focus : Auto Focus / 0.8m Min. Focus Distance

DORI

• Detect (25px/m) : 50m
• Observe (63px/m) : 20m
• Recognise (125px/m) : 10m
• Identify (250px/m) : 5m

Video

• Resolution : 8.0MP (4096 x 1860) to 960 x 432
• Frame Rate (Main) : 8.0MP (1 ~ 20fps)
• Frame Rate (Sub) : 1200 x 530 (1 ~ 20fps)
• Frame Rate (Third) : 1920 x 860 (1 ~ 20fps)
• Video Compression : H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
• Bit Rate : H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps
• Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night : Auto (ICR) / Color / B&W
• Lighting Compensation : BLC / HLC / WDR (120dB)
• Smart Scene Adaptive (SSA) : Yes
• White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control : Auto
• Noise Reduction : 3D DNR
• Picture Control : N/A

IVS

• Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog
• Perimeter Protection : Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
• Face Detection : N/A
• Face Attributes : N/A
• People Counting : N/A
• Heat Map : N/A
• Event Trigger : Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
• Intelligent Search : Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

Network

• Ethernet : RJ-45 (10/100Base-T)
• Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
• Streaming Method : Multicast
• Max. User Access : 20 Users (Total bandwidth: 64MB)

Interface

• Video Interface : N/A
• Audio Interface : Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
• Alarm Interface : 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
• RS485 : N/A
• Edge Storage : MicroSD Card (up to 256GB) / NAS / FTP / SFTP
• Interoperability : ONVIF (Profile S, Profile G, Profile T) / CGI

Environmental

• Power Supply : 12VDC / PoE (802.3af)
• Power Consumption : Deterrence: <8.7W (12VDC), <10.85W (PoE)
• Operating Conditions : -40°C ~ +60°C / ≤95% RH
• Ingress Protection : IP67
• Vandal Resistance : N/A
• Series : Professional AI Series
• Camera Type : Turret
• Housing : Metal
• Pan/Tilt/Rotation : Pan: 0° ~ 360°, Tilt: 0° ~ 77°, Rotation: 0° ~ 360°
• ePoE : No
• Dimensions : Ø 122mm x 135mm
