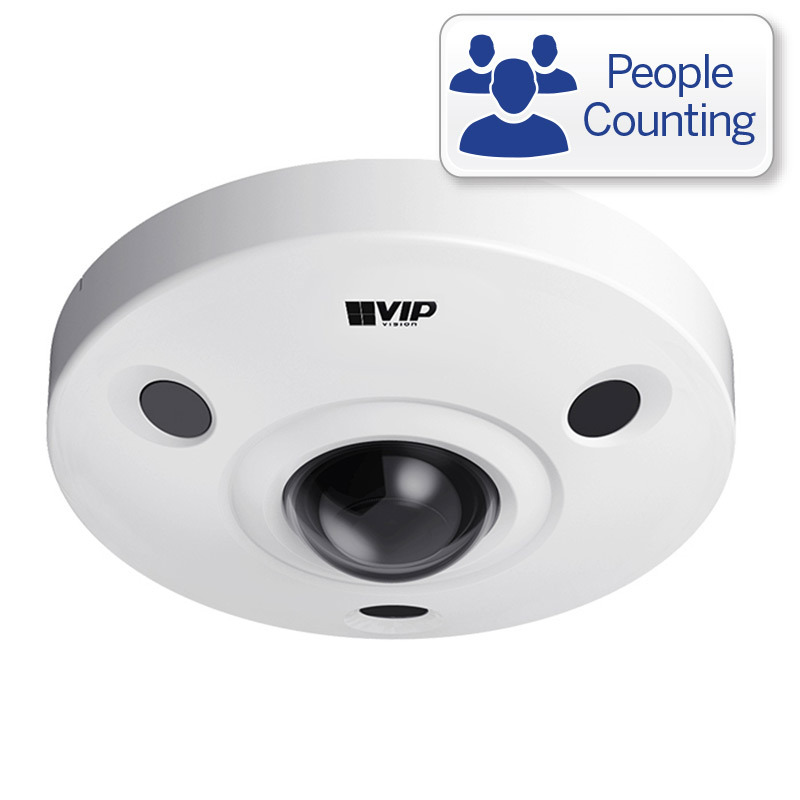

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

The VSIPFE-12IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting, queue management and heat mapping. Receive alerts when a certain number of people enter an area with queue management or set up heat map to observe the amount of time spent in areas.

Camera Features:

Stream up to 12.0MP (4000 x 3000) at 25fps
Circular fisheye lens with 360° viewing angle
Dewarp modes (NVR64ULT8S, NVR32ULTNPV2, NVR32PRO16P3, NVR24PRO6, NVR16PRO7, NVR8PRO7) for ceiling, floor & wall mounting
Virtual PTZ, panorama, & camera split dewarp modes
Up to 10m infrared range; true day/night (auto ICR)
Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
Heat map, queue management & regions of interest
MicroSD card slot for edge recording up to 128GB
IP67 weather & IK10 vandal resistant housing

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Specifications

Camera

Image Sensor : 1/1.7" 12.0MP Progressive Scan CMOS
Max. Resolution : 12.0 Megapixel
Effective Pixels : 4000 (H) x 3000 (V)
RAM / ROM : 4GB / 4GB
Min Illumination : 0.001 Lux/F2.0 (colour 1/3s), 0.01 Lux/F2.0 (colour 1/30s), 0 Lux/F2.0 (IR on)
S/N Ratio : 49.7dB
Infrared System 3 x Infrared LED, 10m range

Lens

Lens Type : Fixed
Lens / Iris : 1.85mm F2.0 Fixed Focal Lens with Fixed Aperture
Field of View : Horizontal: 185°, Vertical: 180°
Focus : Fixed

DORI

Detect (25px/m) : 40m
Observe (63px/m) : 16m
Recognise (125px/m) : 8m
Identify (250px/m) : 4m

Video

Resolution : 12.0MP (4000 x 3000) to CIF (352 x 288)
Frame Rate (Main) : 12.0MP (1 ~ 25fps)
Frame Rate (Sub) : D1 (1 ~ 25fps)
Frame Rate (Third) : D1 (1 ~ 25fps)
Video Compression : H.265, H.264, H.264H, H.264B, MJPEG
Bit Rate : H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : N/A
Lighting Compensation : DWDR
Smart Scene Adaptive (SSA) : No
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Manual
Noise Reduction : 3D DNR
Dewarping Modes : Original (Dewarp Supported) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split

IVS

Intelligent Functions : Intrusion, Tripwire, Region of Interest (4 zones), Privacy Masking (4 zones) Smart Infrared, Heat Map
People Counting : Queue Management (Triggers alarm when designated amount of people enters zone, 4 zones), Heat Mapping (Number of people and time spent)

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users

Interface

Video Interface : N/A
Audio Interface : 1 Channel Input (RCA), 1 Built-in Mic / 1 Channel Output / Audio Compression: G.711A, G.711Mu, G726, AAC
Alarm Interface : 2 Channel Input / 2 Channels Output
RS485 : N/A
Edge Storage : MicroSD Card (up to 256GB) / FTP
Interoperability : ONVIF (Profile S / Profile G), GB/T28181, CGI
