Specialist AI Series PTZ Positioning Camera

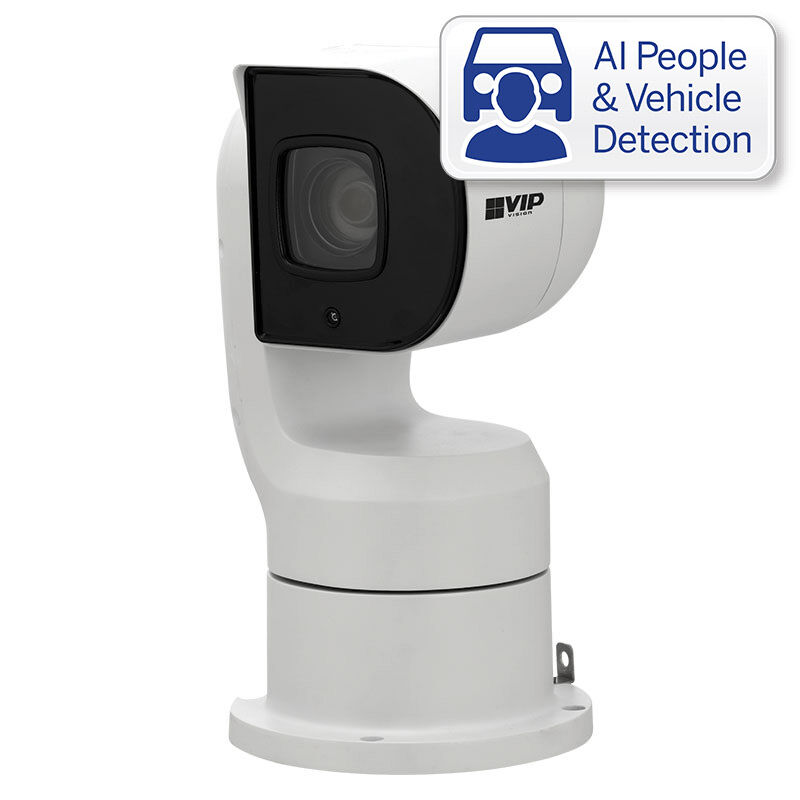

Specialist AI Series PTZ Positioning Camera VSIPPTZ-2IRW-I2

Experience clear large-scale surveillance, the vandal-resistant AI PTZ combines the flexibility and coverage of PTZ with the power of smart AI technology. The PTZ AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time.

Camera Features:

Stream up to 2.0MP (1920 x 1080) at 50fps
25x optical zoom lens (59.2° ~ 2.4° viewing angles)
Low light colour performance at 0.005lx; 150m IR
Auto tracking with intelligent video functions
AI powered perimeter protection & smart motion detection (SMD+)
Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
MicroSD slot for recording at the edge up to 256GB
Supports Power over Ethernet (802.3af) or 24VAC
IP67 weather rated & lightning proof housing

Specifications

Camera

Image Sensor : 1/2.8” 2.0MP Progressive Scan CMOS
Max. Resolution : 2.0 Megapixel
Effective Pixels : 1920 (H) x 1080 (V)
RAM / ROM : 1GB / 4GB
Min Illumination : 0.005 Lux/F1.6 (Color), 0.0005 Lux/ F1.6 (B/W), 0 Lux (IR on)
S/N Ratio : ≥61dB
Infrared System : 4 x Infrared LED, 150m range, Zoom Prio / Manual / OFF on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 4.8 ~ 120mm F1.6 ~ F3.5 Motorised Lens with Auto Iris
Field of View : Horizontal: 58.5~2.8°, Vertical: 33.2°~1.5° (25x Optical Zoom)
Focus : Auto/Semi-Auto/Manual / 0.1 ~ 1.5m Min. Focus Distance

DORI

Detect (25px/m) : 1655m
Observe (63px/m) : 654m
Recognise (125px/m) : 331m
Identify (250px/m) : 165m

PTZ

Pan / Tilt Range : Pan: 0 ~ 360° / Tilt: -90 ~ 90°
PTZ Speed : Preset: Pan: 160°/s; Tilt: 110°/s Manual: Pan: 0.1° ~ 120°/s; Tilt: 0.1° ~ 75°/s
Modes / Presets : Up to 300 presets / 8 tour
Start-up Action : Auto-restore to previous PTZ/lens status

Video

Resolution : 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main) : 1080p (1 ~ 25fps)
Frame Rate (Sub) : D1/CIF (1 ~ 25fps)
Frame Rate (Third) : 1080p / 960p / 720p / D1 / CIF (1 ~ 25fps)
Video Compression : H.264H; H.264B; Smart H.265+; H.264; H.265; Smart H.264+; MJPEG (Sub Stream)
Bit Rate : H.264: 64 ~ 10496Kbps / H.265: 25 ~ 6400Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA) : N/A
White Balance : Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light / Street Lamp
Gain Control : Auto / Manual
Noise Reduction : 2D / 3D
Picture Control : Flip 180°

Artificial Intelligence

Face Recognition : Yes
Face Capture : Yes
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking : Support
Metadata : Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
People Counting : N/A
Heat Map : N/A

Intelligent Video Surveillance (IVS)

IVS Functions : Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Event Triggers : Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Region of Interest : Support
Optical Defog : Support
Digital Zoom : 16x
Privacy Masking : Up to 24 areas, and up to 8 areas in the same view
Image Stabilisation : Support

Network

Ethernet : RJ-45 (10Base-T/100Base-TX)
Protocol : IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users

Interface

Video Interface : N/A
Audio Interface : 1 Input, 1 Output / Supports Two-way Audio / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Alarm Interface : 2 Inputs / 1 Output / Alarm Linkage: Capture; Preset; Tour; Pattern; SD Card Record; Trigger Digital Output; Client Electronic Map; Send Email
RS485 : N/A
Edge Storage : MicroSD Card (up to 256GB) / FTP / NAS
Interoperability : ONVIF (Profile S/ Profile G) / CGI

Environmental
