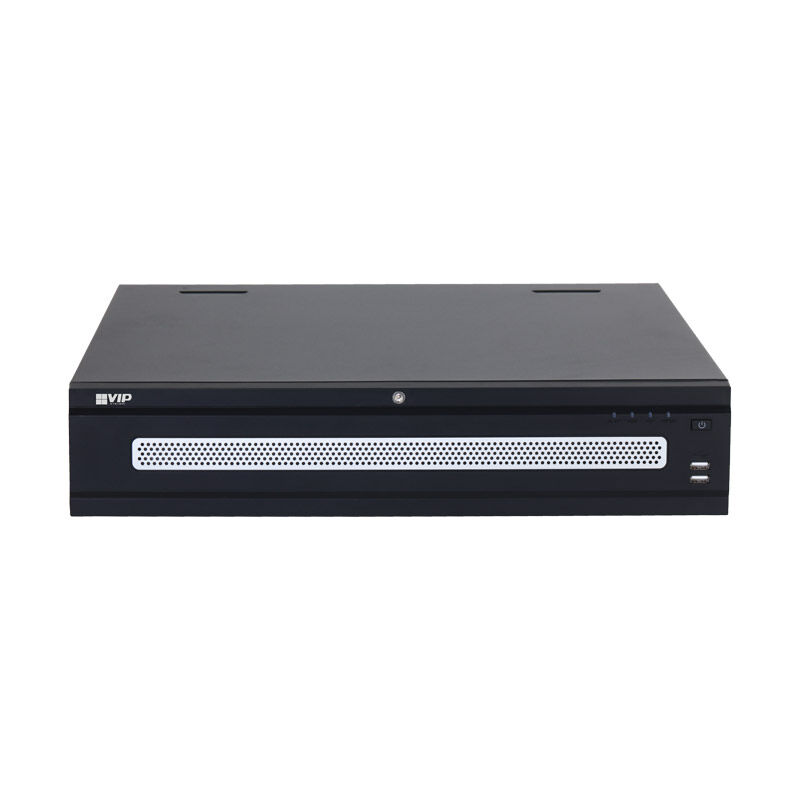

Monitor your enterprise's operations with ease using the VIP Vision Ultimate AI Series NVR128ULT-I. Enjoy accurate video notifications and seamless footage search powered by advanced AI. Simultaneously connect more users with 2.5GBps Ethernet input for a better user experience. Protect what's most important to you by integrating a wide range of cameras and benefit from ample footage storage.

Product features:
• Record up to 32.0MP with H.265 video compression
• Up to 1024Mbps bandwidth (800Mbps outgoing)
• Suite of AI functions for improved alerts & playback
• Supports AI face detection and recognition via NVR
• Supports AI human/vehicle detection via NVR
• Supports ANPR by camera up to 32 channels
• 8 x SATA bay with HDD support up to 16TB/bay
• Backup via external USB device or local network
• Supports 2 x 2.5GBps Ethernet network input
• Decode up to 64 channels at 720p (25fps)

*This NVR requires external Power over Ethernet switches.
*Same AI enabled and disabled decoding capacity
*NVRs include 4 year warranty; HDDs include 3 year warranty

Specifications

General

• Video Input - 128 Channels
• PoE - No
• HDD Capacity - 8
• Processor & Operation - Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
• Interoperability - ONVIF (Profile T; Profile S; Profile G); CGI; SDK. Supports RTSP, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
• App Integration - iOS / Android

Recording

• Recording Resolution - Configurable from 32.0MP (6528 x 4896) to D1 (704 x 576)
• Network Bandwidth (AI Disabled) - 1024Mbps (incoming/recording), 800Mbps (outgoing)
• Network Bandwidth (AI Enabled) - 512Mbps (incoming/recording), 400Mbps outgoing
• Video & Audio Compression - Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG / MPEG4, Audio: G.711a / G.711u / PCM / G726
• Playback Channels - Up to 16 channels
• Playback Modes - General Recording, Motion Detection, Intelligent Events, Alarm Triggers
• Decoding Capacity (AI Disabled) - 8CH@8.0MP/25fps, 128CH@D1/25fps
• Decoding Capacity (AI Enabled) - 8CH@8.0MP/25fps, 128CH@D1/25fps
• Backup Method - Portable hard drive / Burner / USB device / Network / eSATA

Interface

• HDD - 8 x SATA bays up to 16TB per bay, RAID 0/1/5/6/10, Hot swapping
• Audio - 1 channel input (RCA), 2 channel output (RCA)
• Alarm Interface - 16 channels input, 8 channels output
• Alarm Types - General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
• Alarm Actions - Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
• Display Output - 4 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
• Display Split - 1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16/25/36
• Display Mode - Single Source (Mirrored): HDMI1@4K, HDMI2@4K, HDMI3@8K, HDMI4@1080p, VGA1@1080p, VGA2@1080p Multiple Sources (Up to 4 sources): HDMI1@4K + VGA1@1080p (mirror), HDMI2@4K + VGA2@1080p (mirror), HDMI3@4K, HDMI4@1080p
• Network Input - 2 x 2500Mbps Ethernet
• Network Functions - HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
• USB & Other Inputs - 2 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485 A/B, 1 x RS-232, 1 x eSATA

Artificial Intelligence

• NVR Operated AI - Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata
• Supported Camera AI - Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
• Face Detection Functions - Gender, Age Group, Glasses, Expressions, Face Mask, Beard
• Face Detection (By NVR) - 4 channels (up to 12 face images per second, per channel)
• Face Detection (By Camera) - 64 channels
• Face Recognition Capacity - NVR Supports up to 40 face databases and 300,000 face images
• Face Recognition (By NVR) - 4 channels (Face detection via NVR video stream analysis; Face recognition performed by NVR) 20 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
• Face Recognition (By Camera) - 64 channels
• Human/Vehicle Detection Functions - AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
• Human/Vehicle Detection (By NVR) - IVS: 24 channels (10 rules per channel), SMD: 32 channels
• Human/Vehicle Detection (By Camera) - IVS: 64 channels, SMD: 64 channels
• ANPR Functions - Up to 20,000 plate numbers, blocklist & allowlist
• ANPR (By Camera) - 32 channels
• Video Metadata Functions - People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
• Video Metadata (By NVR) - 8 channels
• Video Metadata (By Camera) - 32 channels

Environment

• Power Supply - 100–240 VAC / 50-60 Hz
• Power Consumption - ≤ 18W (without HDD)
• Operating Environment - -10°C ~ +55°C / 10 ~ 93%RH
• Rackmountable - Yes
• Rackmount Units - 2U
• Dimensions - 440mm × 460mm × 95mm
