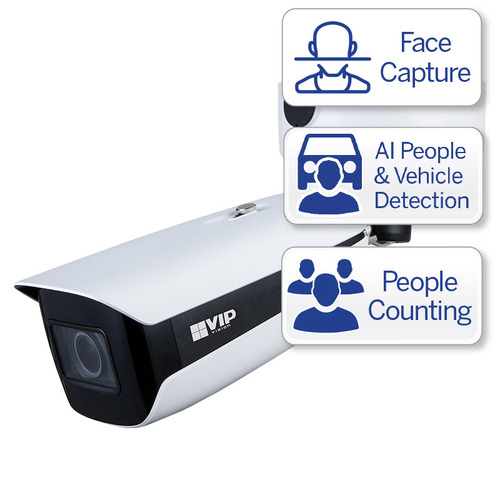

Ultimate AI Series 8.0MP Motorised Bullet

Ultimate AI Series 8.0MP Motorised Bullet VSIPU-8BIRM-I

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time.

Camera Features:

Stream up to 8.0MP (3840 x 2160) at 25fps
2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
H.265 encoding for efficient storage & streaming
60m infrared range; true day/night (auto ICR)
Back/highlight compensation & true WDR (140dB)
MicroSD slot for recording at the edge up to 256GB
Internal face detection & capture to extend recognition
Perimeter Protection to identify people & vehicles
Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms, all using any VIP Vision NVR
Intelligent AI-enhanced people counting for retail capacity management and flow control
Extend PoE up to 800m (requires ePoE NVR/switch)
IP67 weather rated housing for outdoor use
Built-in heater to prevent condensation in cold environments

Specifications

Camera

Image Sensor : 1/1.8’’ 8.0MP Progressive Scan CMOS
Max. Resolution : 8.0 Megapixel
Effective Pixels : 3840 (H) x 2160 (V)
RAM / ROM : 2GB / 4GB
Min Illumination : 0.003 Lux / F1.2 (Color)
S/N Ratio : > 50dB
Infrared System : 4 x Infrared LED, 60m range, Auto/manual on/off control

Lens

Lens Type : Motorised Varifocal
Lens / Iris : 2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris
Field of View : Horizontal: 114°~47°, Vertical: 59°~27°
Focus : Auto Focus / 1.2m Min. Focus Distance

DORI

Detect (25px/m) : 87m (wide) / 187m (tele)
Observe (63px/m) : 35m (wide) / 75m (tele)
Recognise (125px/m) : 17m (wide) / 37m (tele)
Identify (250px/m) : 9m (wide) / 19m (tele)

Video

Resolution : 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main) : 8.0MP (1 ~ 25fps)
Frame Rate (Sub) : 704 x 576 (1 ~ 25fps)
Frame Rate (Third) : 1080p (1 ~ 25fps)
Video Compression : H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate : H.264: 32Kbps ~ 16384Kbps / H.265: 12Kbps ~ 16384Kbps
Bit Rate Control : Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night : Auto (ICR) / Color / B&W
Lighting Compensation : BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA) : Yes
White Balance : Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control : Auto / Manual
Noise Reduction : 3D DNR
Picture Control : Mirror / Flip (0°, 90°, 180°, 270°) (8.0MP supports 90° & 270° at 1080p resolution)

IVS

Intelligent Functions : Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection : Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection : Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes : Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting : Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map : N/A
Event Trigger : N/A
Intelligent Search : Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes

Network

Ethernet : RJ-45 (10/100Base-T)
Protocol : HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec; Bonjour
Streaming Method : Unicast / Multicast
Max. User Access : 20 Users

Interface

Video Interface : N/A
Audio Interface : 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Alarm Interface : 3 channel in: 5mA 5VDC / 2 channel out: 1000mA 30VDC / 500mA 50VDC
RS485 : 1 (Bit rate: 1200bps ~ 115200bps)
Edge Storage : MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability : ONVIF / P2P / CGI / Milestone / Genetec

Environmental
