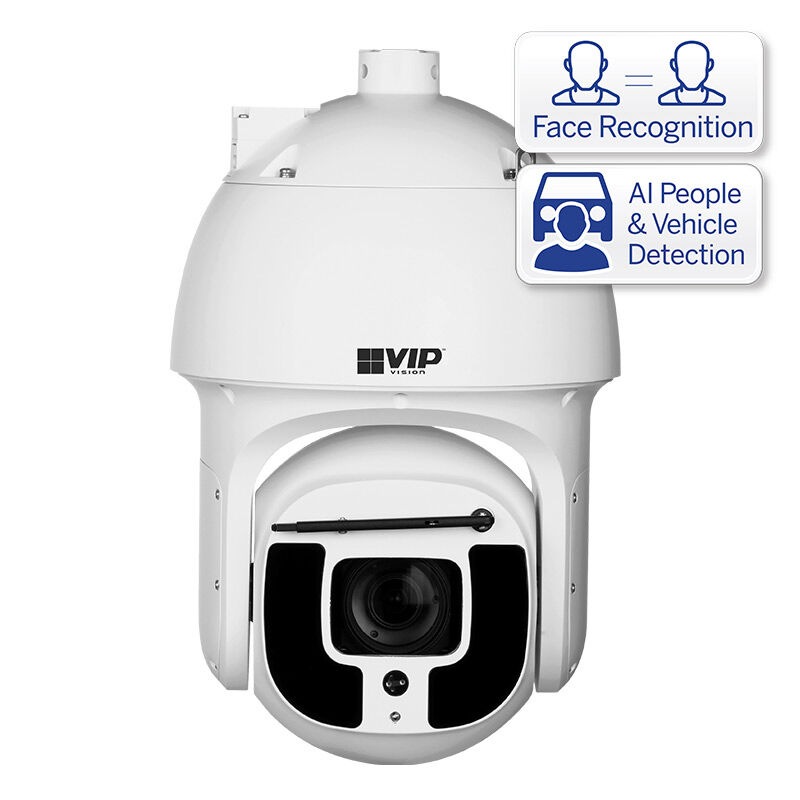

The VSIPPTZ-8IRU-I2 Ultimate AI Series PTZ offers the best in camera performance & mobility with machine-learning AI features that deliver an intelligent surveillance experience.

To provide the best surveillance performance, camera features from the VSIPPTZ-8IRU-I2 include 4K resolution image capture in real-time 25fps, incredible 40x lossless optical zoom and exceptional colour image quality in low-light.

This AI camera features on-board Face Recognition, with database support for up to 10,000 faces for real-time face capture and comparison. Using AI algorithms, the camera can also distinguish vehicles & people from other motion events and use auto-tracking to intelligently follow subjects.

Camera features:
• Stream up to Ultra HD 8.0MP (3840 x 2160) at 25fps
• 40x Motorised Varifocal lens (64 ~ 2.0° horizontal viewing angles)
• Face capture & recognition; person & vehicle detection (perimeter protection)
• Auto tracking subjects with vehicle/people detection via AI
• Up to 500m infrared distance in total darkness; IR & lens wiper
• Exceptional low light colour performance; min. illumination of 0.002lx
• Endless 360° pan; -30° ~ +90° tilt; electronic image stabilisation
• MicroSD card slot for recording up to 256GB
• Audio, alarm and video interface input/output
• Supports power via Hi-PoE (IEEE802.1x)
• IP67 weather resistant housing for external use

This PTZ dome camera comes standard with a right angle bracket and AC power supply.

Specifications

Camera

• Image Sensor - 1/1.8" 8.0MP STARVIS™ CMOS
• Max. Resolution - 8.0 Megapixel
• Effective Pixels - 3840 (H) x 2160 (V)
• RAM / ROM - 2GB / 8GB
• Min Illumination - 0.002 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
• S/N Ratio - > 55dB
• Infrared System - 10 x Infrared LED, 450m range, Auto/manual on/off control

Lens

• Lens Type - Motorised Varifocal
• Lens / Iris - 5.6 ~ 223mm F1.4 ~ F4.5 Motorised Lens with Auto Iris
• Field of View - Horizontal: 64.0° ~ 2.0° (40x Optical Zoom)
• Focus - Auto / Manual / 1m Min. Focus Distance

DORI

• Detect (25px/m) - 4400m
• Observe (63px/m) - 1740m
• Recognise (125px/m) - 880m
• Identify (250px/m) - 440m

PTZ

• Pan / Tilt Range - Pan: 0 ~ 360° (endless) / Tilt: -30 ~ 90° / Auto-flip 180°
• PTZ Speed - Preset: Pan: 240°/s; Tilt: 200°/s Manual: Pan: 200°/s; Tilt: 120°/s
• Modes / Presets - Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Start-up Action - Auto-restore to previous PTZ/lens status

Video

• Resolution - 8.0MP (3840 x 2160) to CIF (352 x 288)
• Frame Rate (Main) - 8.0MP (1 ~ 25fps)
• Frame Rate (Sub) - D1 (1 ~ 25fps)
• Frame Rate (Third) - 1080p (1 ~ 25fps)
• Video Compression - H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Bit Rate - H.265: 256kbps ~10240Kbps - H.264: 512K ~ 16384Kbps
• Bit Rate Control - Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night - Auto (ICR) / Color / B&W
• Lighting Compensation - BLC / HLC / WDR (120dB)
• Smart Scene Adaptive (SSA) - No
• White Balance - Auto / ATW / Indoor / Outdoor / Manual
• Gain Control - Auto / Manual
• Noise Reduction - Ultra 2D/3D DNR
• Picture Control - Flip 180°

Artificial Intelligence

• Face Recognition - Supports database up to 10,000 face images
• Face Capture - Support
• Perimeter Protection - Tripwire rule / Intrusion area rule (Person & vehicle detection by AI)
• Auto Tracking - Support
• Metadata - Support
• People Counting - N/A
• Heat Map - N/A

Intelligent Video Surveillance (IVS)

• IVS Functions - Abandoned object / Missing object
• Event Triggers - Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
• Region of Interest - Support
• Optical Defog - Support
• Digital Zoom - 16x
• Privacy Masking - Up to 24 areas
• Image Stabilisation - Electronic

Network

• Ethernet - RJ-45 (10Base-T/100Base-TX)
• Protocol - IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 Users

Interface

• Video Interface - 1 Output (Vpp 75Ω)
• Audio Interface - 1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2
• Alarm Interface - 7 Inputs / 2 Outputs
• RS485 - Yes
• Edge Storage - MicroSD Card (up to 256GB) / NAS / Local PC
• Interoperability - ONVIF / PSIA / CGI

Environmental

• Power Supply - 24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at)
• Power Consumption - <48W
• Operating Conditions - -40° ~ +70° C / Less than 90% RH
• Ingress Protection - IP67
• Vandal Resistance - N/A
• Series - Ultimate AI Series
• Camera Type - PTZ
• Housing - Metal
• Pan/Tilt/Rotation - Pan: 0° ~ 360 ° ; Tilt: -30° ~ 90° ; Rotation: 0° ~ 360°
• ePoE - No
• Dimensions - Ø262mm x 415.6mm
