UniFi DREAM MACHINE SPECIAL EDITION

Overview

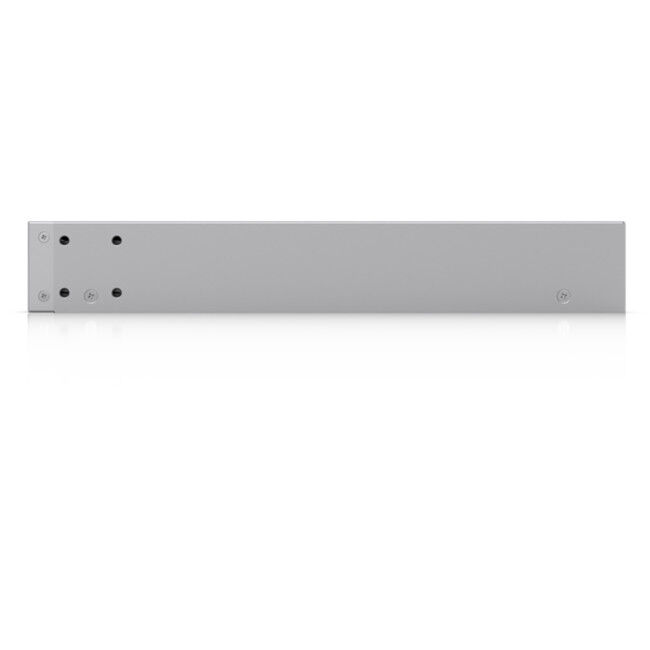

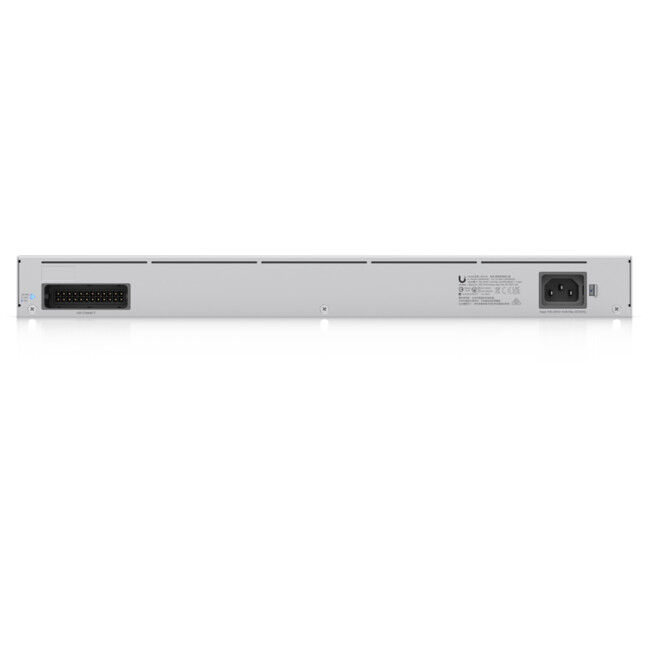

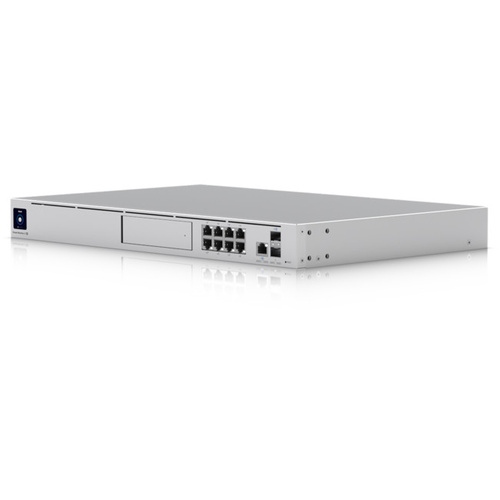

UDM-SE Ubiquiti UniFi Dream Machine – Special Edition

All-in-one router and security gateway with an integrated PoE switch and network video recorder.

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.

Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).

Features

1.7GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
8 × GbE RJ45 ports, including 6 × 802.3af PoE and 2 × 802.3at PoE+ LAN ports
1 × 10G SFP+ LAN port
1 × 1.3″ LCM color touchscreen for at-a-glance network monitoring
Customisable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth®-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Connect a SmartPower Redundant Power System to create an uninterruptible network
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5″ HDDs
128 GB integrated storage for full UniFi OS Application experience

Specifications

Mechanical
Dimensions	442.4mm × 43.7mm × 285.6mm (17.42″ × 1.72″ × 11.24″)
Weight	4.95kg (10.91lb)
Enclosure Materials	Aluminium CNC, SGCC steel
Mount Material	SGCC steel rack mount
Hardware
Processor	Quad-Core ARM® Cortex® −A57 at 1.7 GHz
System Memory	4 GBDDR4
On-board Storage	16GB eMMC Integrated 128GB SSD
IDS/IPS Throughput	3.5 Gbps* *Measured with iPerf3
Max. Power Consumption (excluding PoE output)	50W
Power Method	1 × Universal AC input, 100-240V AC, 4.4A Max, 50/60Hz 1 × USP-RPS DC input, 52V DC, 3.94A
Power Supply	AC/DC, Internal, 240W
Supported Voltage Range	100V to 240V AC
Management Interfaces	Ethernet Bluetooth®
Networking Interfaces	1 × WAN: 2.5 GbE RJ45 port 8 × LAN: 1 GbE RJ45 ports
SFP+ Interfaces	1 × WAN: 10G SFP+ 1 × LAN: 10G SFP+
PoE Interfaces	2 × PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6−) 6 × PoEIEEE 802.3af (pair A 1, 2+; 3, 6−)
Max. PoE Wattage Per Port by PSE 802.3af	15.4W
Max. PoE Wattage Per Port by PSE 802.3at	30W
Voltage Range 802.3af Mode	44V to 57V
Voltage Range 802.3at Mode	50V to 57V
ESD/EMP Protection	Air: ±15kV Contact: ±8kV
LCM Display	1 × 1.3″ touchscreen Bootup Animation: bootup in progress Firmware Upgrade Icon: firmware upgrading
Button	Factory Reset
Operating Temperature	−10°C to 40°C (14°F to 104°F)
Operating Humidity	5 - 95% non-condensing
Certifications	CE, FCC, IC
LEDs
Ethernet	White: link/activity
SFP+	White: link/activity
HDD	White: disk activity Amber: disk error
RPS	Blue: ready
