Overview

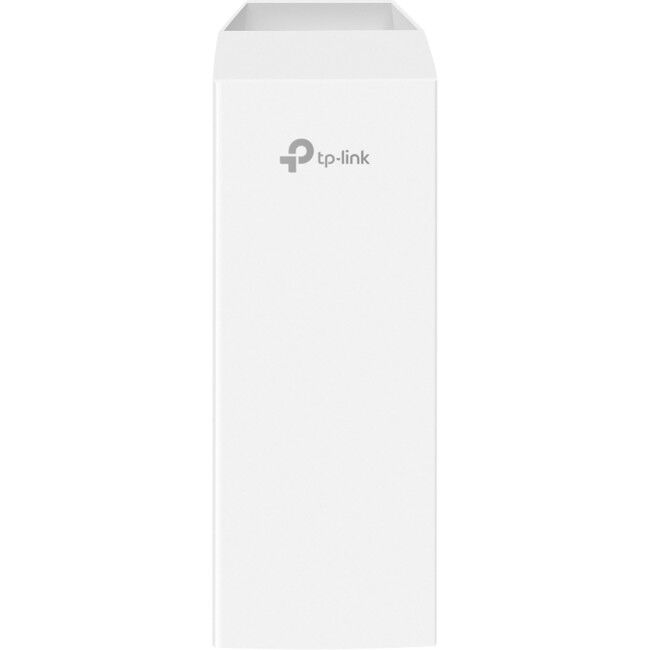

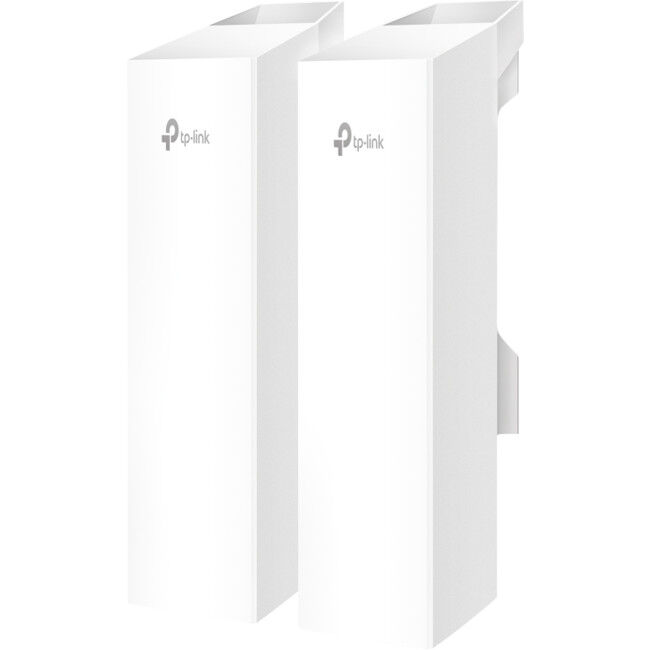

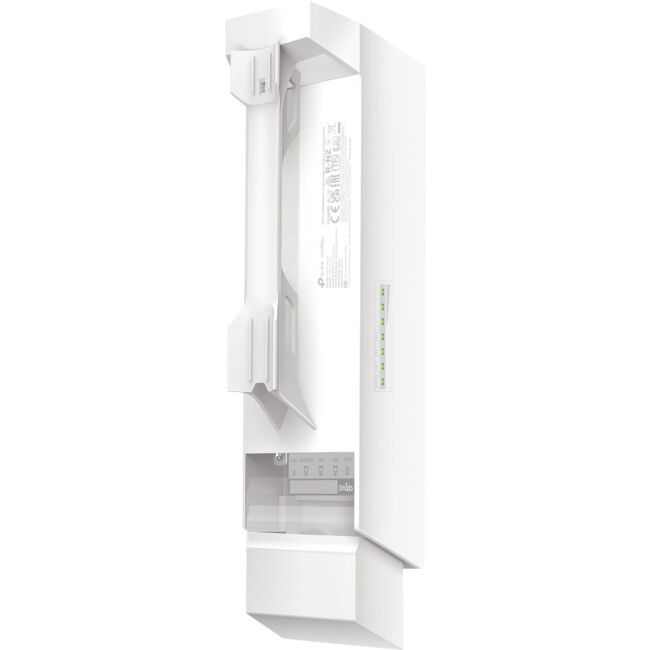

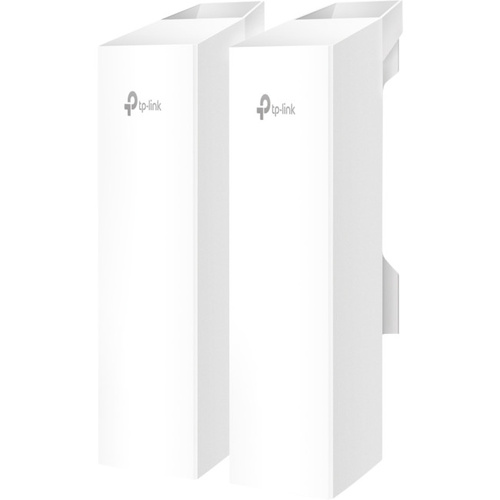

EAP211-Bridge KIT Wireless Bridge
5 GHz 867 Mbps Indoor/Outdoor Access Point
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*¹
- Ideal for long-range wireless transmission up to 1 km.*²
- Auto-pairing and agile LEDs for efficient deployment.

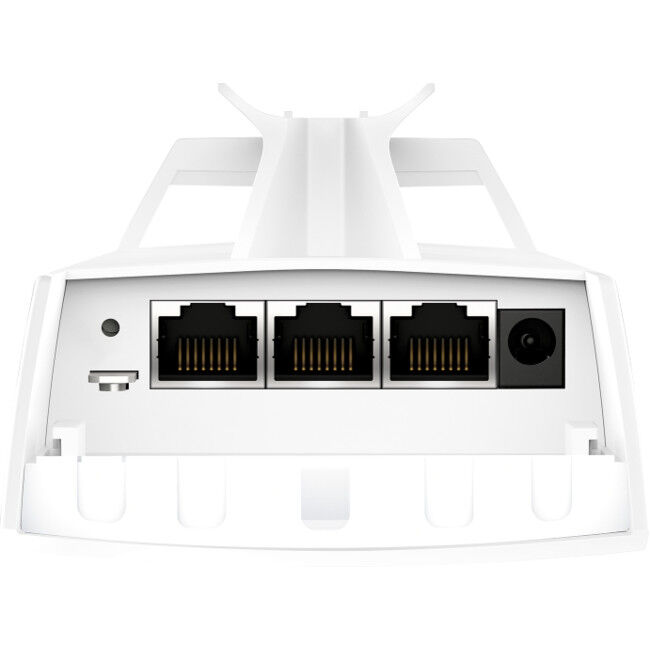

- 3 × Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*³
- Supports Passive PoE for flexible deployment (adapter included).
*1: Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
*2: All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
*3: Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
Specifications
Specifications
HARDWARE FEATURES | |
---|---|
Interface | 3x Gigabit Ethernet Ports |
Button | Reset |
Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
Power Consumption | 11.5W |
Dimensions (W×D×H) | 224mm × 79mm × 60mm (8.8″ × 3.1″ × 2.4″) |
Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi |
Weatherproof Enclosure | IP65 |
Mounting | Pole Mounting (Accessories included) |
WIRELESS FEATURES | |
---|---|
Coverage | 1000m (3280ft)⁵ |
Wireless Standards | IEEE 802.11 a/b/g/n/ac |
Frequency | 5 GHz |
Signal Rate | 5 GHz: Up to 867 Mbps |
Wireless Functions |
|
Wireless Security |
|
Transmission Power |
|
MANAGEMENT | |
---|---|
Omada App | Yes |
Restore & Backup | Yes |
Firmware Update via Web | Yes |
NTP | Yes |
Centralised Management |
|
Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
SSH | Yes |
Web-based Management | Yes |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents |
|
Environment |
|
*4: These functions require the use of an Omada SDN controller.
(EAP211)
SKU | EAP211 |
Model # | EAP211 |
Barcode # | 4895252502541 |
