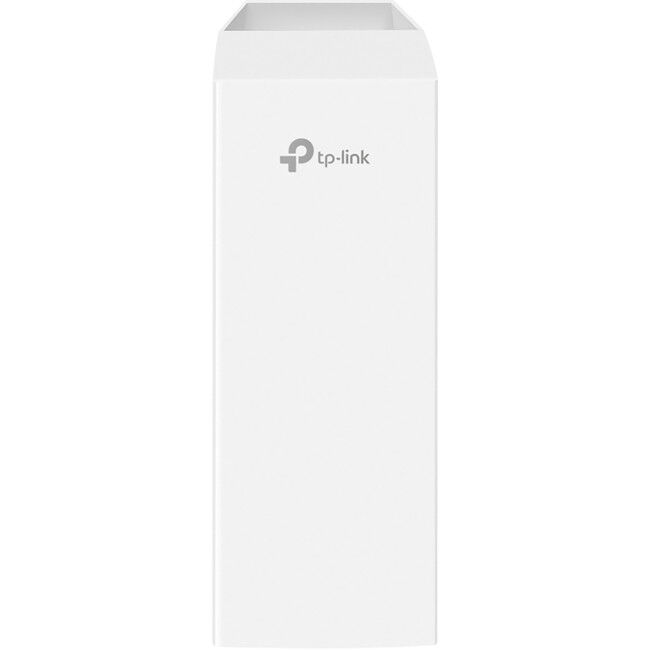

WIRELESS BRIDGE 5GHz AC867 INDOOR OUTDOOR AP 5KM

Overview

Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point

Features

802.11ac for up to 867 Mbps on the 5 GHz wireless data rate*¹
Ideal for long-range wireless transmission up to 5 km*²
Auto-pairing and agile LEDs for efficient deployment.

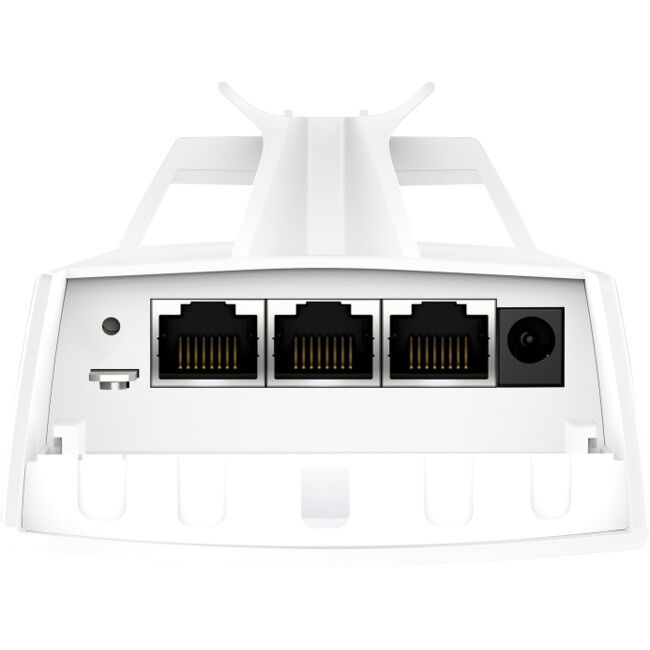

3 × Gigabit Ethernet ports for more high-speed IP camera connections
Supports Omada SDN for remote and centralized management
IP65 weatherproof enclosure and 6000V lightning protection ensures all-weather suitability*³
Supports Passive PoE for flexible deployment (adapter included)

*1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
*2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.
*3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

Specifications

Interface	3 × Gigabit Ethernet Ports
Button	Reset
Power Supply	12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption	11.5W
Dimensions ( W × D × H )	224mm × 79mm × 60mm (8.8″ × 3.1″ × 2.4″)
Antenna Type	Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi
Weatherproof Enclosure	IP65
Mounting	Pole mounting (Accessories included)

WIRELESS FEATURES
Coverage	5000m (16400ft)⁵
Wireless Standards	IEEE 802.11 a/b/g/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	• Mesh*⁴ • MU-MIMO: 5G 2×2 MU-MIMO DL • Load Balance • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*⁴ • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power	• CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP); • FCC: <22dBm (5 GHz band1/4)

MANAGEMENT
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS

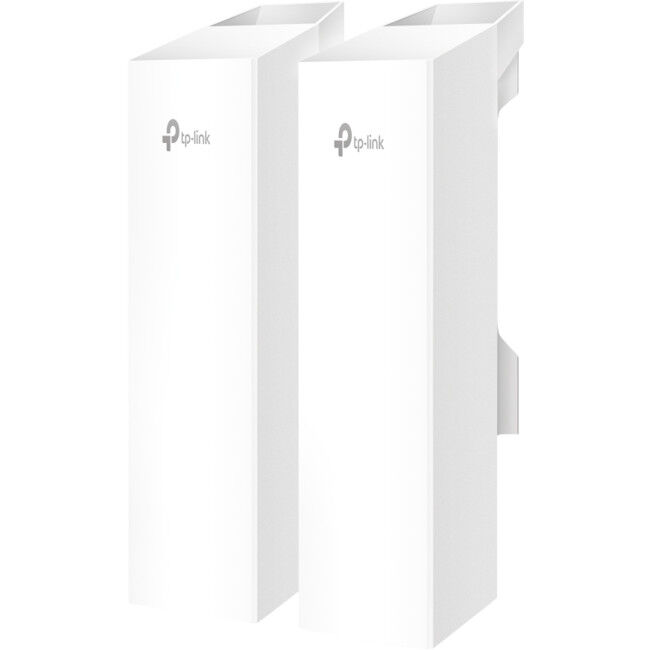

Package Contents	• EAP215-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
