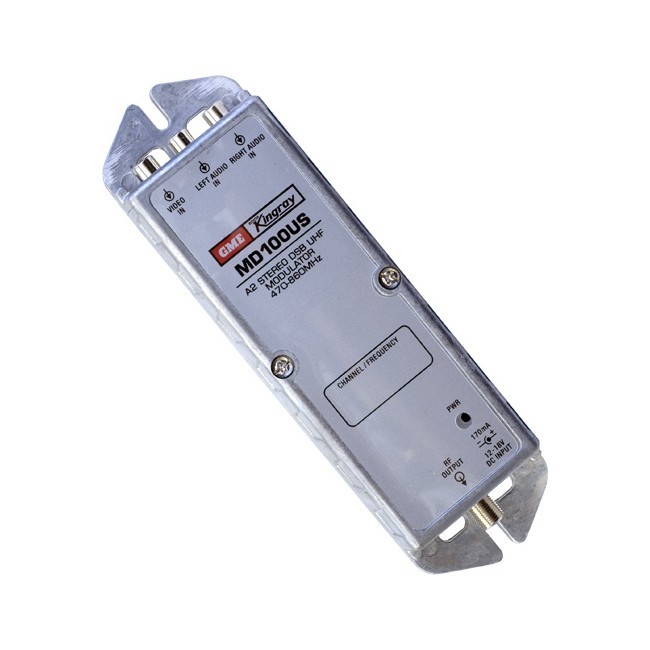

The MD100US is a Analogue Stereo Modulator which converts AV to RF, Frequency Range of 470-860 MHz

• Modulators are designed to convert a baseband or A.V. (Audio Video) signal into an RF signal.
• This allows the outputs from set top boxes, videos, DVD’s, AM and FM tuners, CD players or cameras to be integrated into any television system.
• By using Kingray stereo modulators (able to adjust the RF output frequencies via the dip switches) a flexible solution is available to suit each individual system.
• There are a number of cheap modulators on the market that have left and right channel inputs, however they are not a true stereo unit.
• When selecting a stereo modulator, ensure you are getting true stereo and not mono.
• The MD100US allows for an RCA stereo or mono audio/video baseband input with a frequency adjustable RF output.
• The unit can be remotely or rack (KR001) powered to the output socket, or a separate power supply can be purchased.

Features

• RCA Stereo Input to RF Output 470-860 MHz
• Stereo Sound - Mono Option
• 40dB Gain
• Output Level 63-103dB
• Agile in 250KHz Steps Adjustable
• Phase Lock Looped for Stability
• Harmonic Filtering
• Switchable Test Pattern
• Fully Shielded Die Cast Housing
• Rack Mounting Option Available - KR001
• Powered Locally or Remotely
• Current Consumption: 100mA
• Operating Voltage: 12-18V DC
• Suitable Power Supply: PSK12S or PSK18S
